WWII fighter comparison

[Gary Brantley]

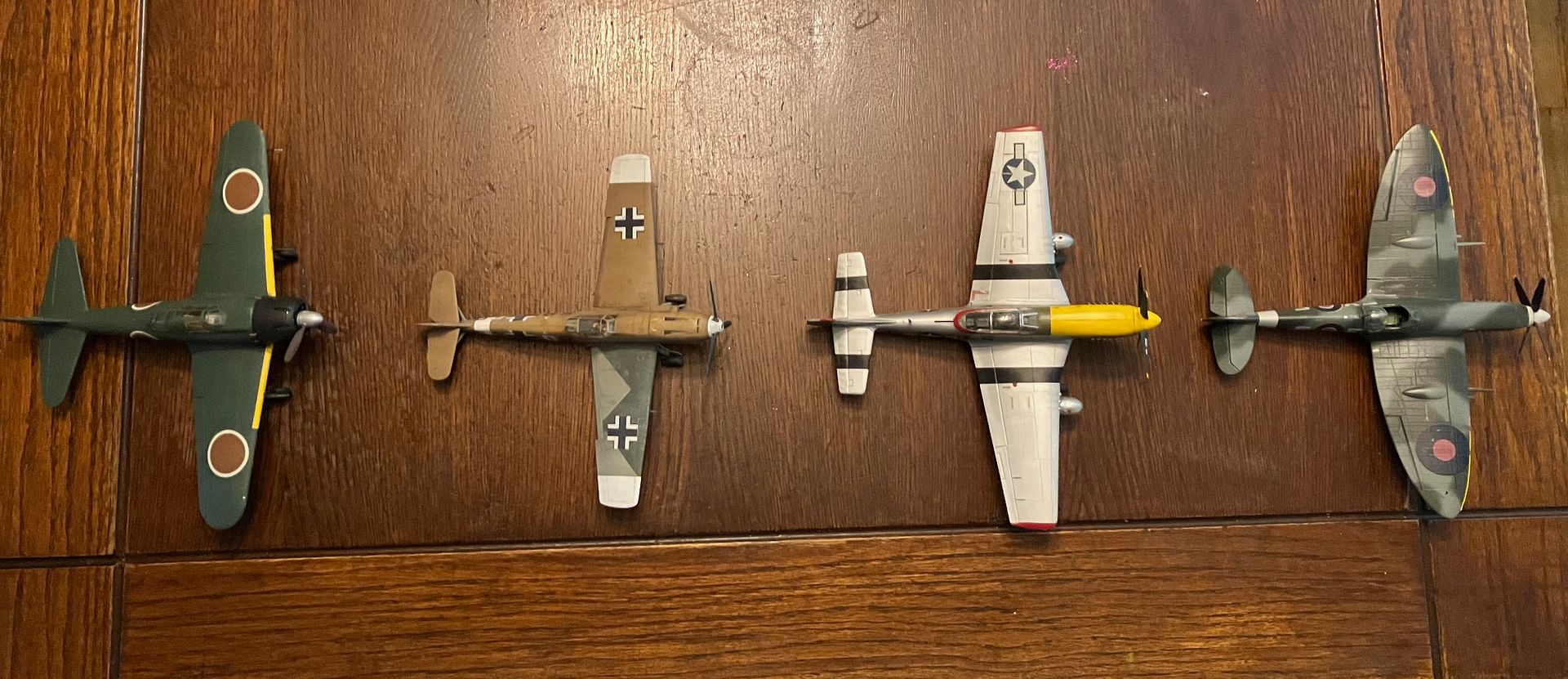

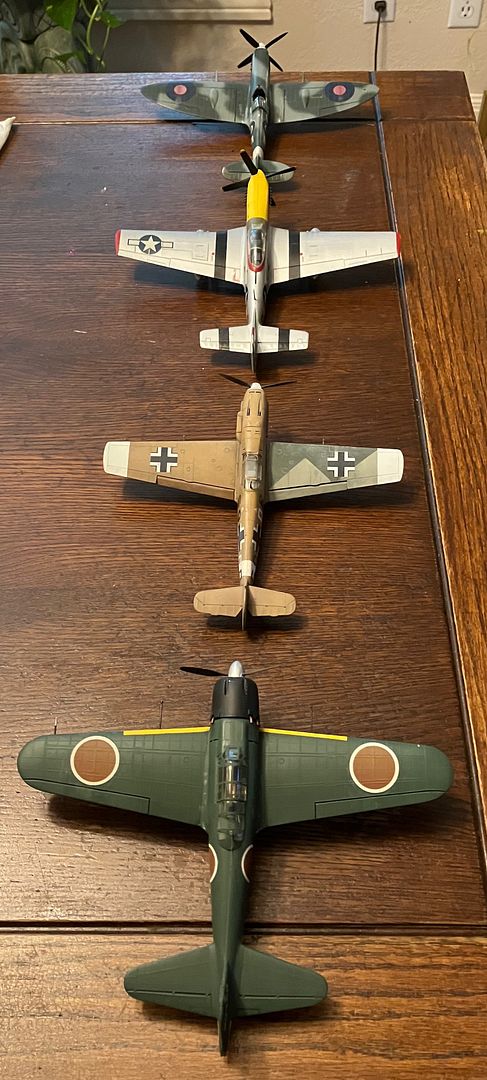

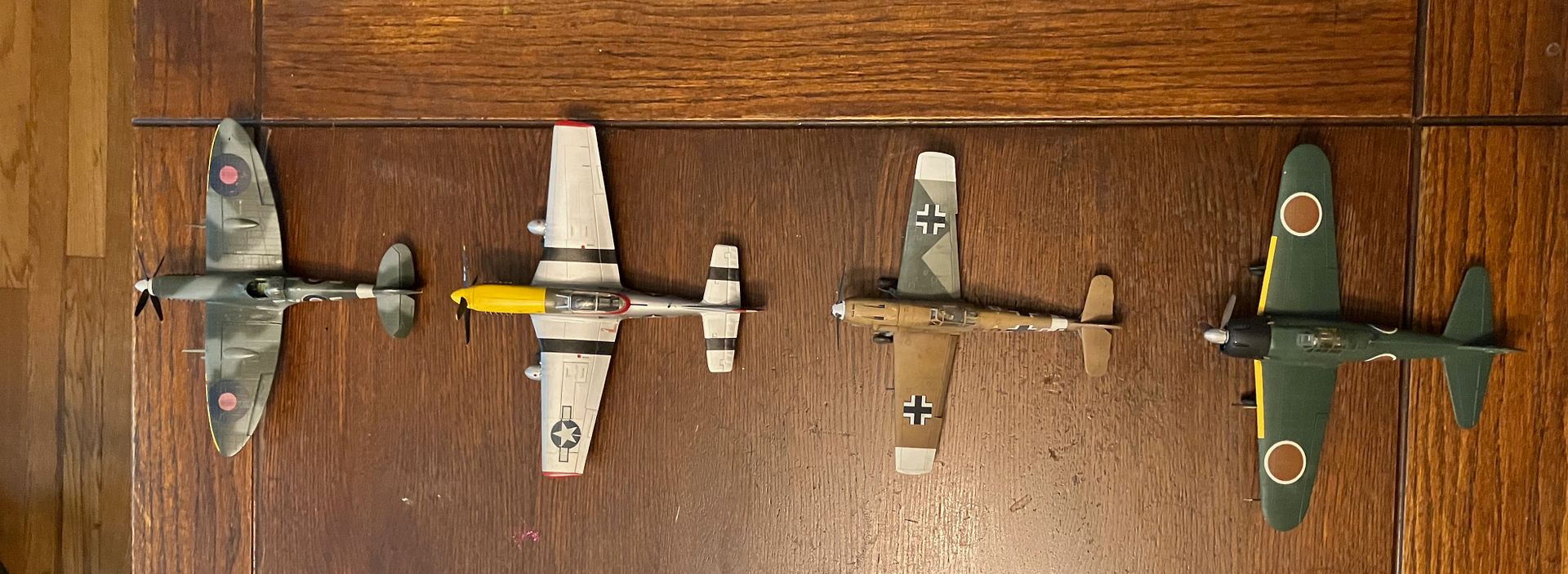

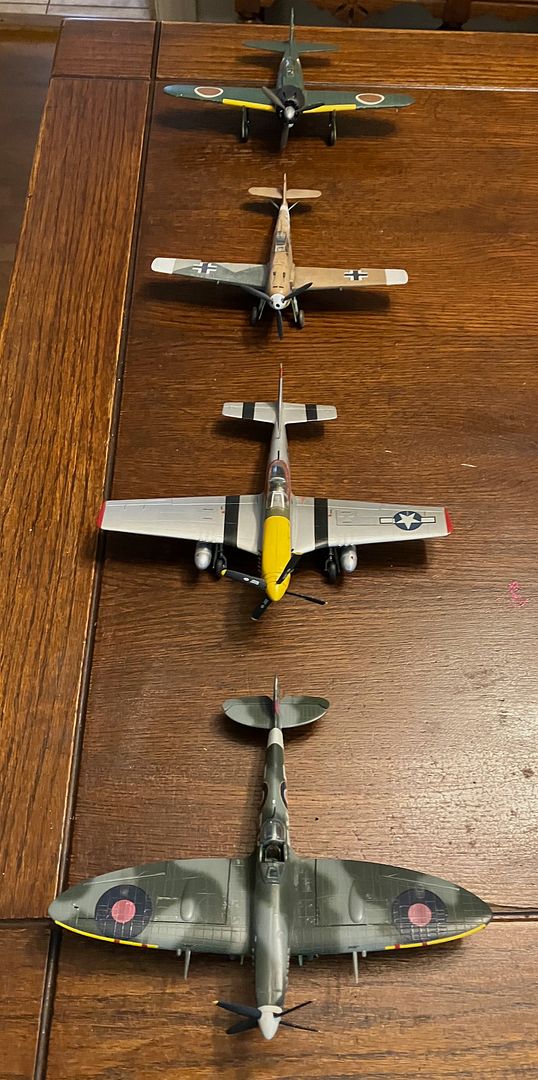

After doing some work on my 109, I pulled several other iconic World War Two fighters out of the display cabinets and sat them beside the Messerschmitt. Then, I realized that I had one each from four of the major players of the war, and that each airplane was once seen as near the pinnacle of performance. I lined them up on our old dining room table and took some iPhone pics so they're sure not very artistic. But they do demonstrate the relative sizes of the birds and that was something that first attracted me to scale odeling as an adult. I could compare all the latest jets and classic warbirds without having to find them together in one place in real life. And that's really why all mine are the same scale. I know; OCD.

[keavdog]

I try to do stuff in the same scale as well - 1/48 for the same reason. Pretty interesting how little the 109 was - especially when you put it next to a P-47. I have one shelf with Axis builds a few Japanese, German and 1 Italian.

[Tojo72]

109 was pretty small

One of my obsessive reasons why I don't mix scales,its either 1/48 A/C 1/350 ships or 1/35 armor,I want to see them all in comparison to each other

[Medicman71]

I love doing the size comparisons with models.

[Gary Brantley]

Well, I'm glad to see I'm not the only OCD sufferer around here! You guys know what I mean about mixing scales.

Mike, I like those comparisons. I recently considered getting my Mirage 2000 and F-102 out of the display just to compare their delta wings!

[Brandons_Iron]

Mig-3, La-7, Zero and 109 were all quite small compared to just about everything else in the skies. The Jug was huge compared to all the others. Then compare a modern Harrier to a F-14. They look like two different scales.

[Gary Brantley]

Mig-3, La-7, Zero and 109 were all quite small compared to just about everything else in the skies. The Jug was huge compared to all the others. Then compare a modern Harrier to a F-14. They look like two different scales.

Yes sir! I did a very quick search of their dimensions because I was curious about the true sizes of these WWII warbirds relative to each other. These must be pretty close, considering slight differences between various types of each.

MiG-3

Wingspan 33'6" Length 27'1"


A6M Type 0

Wingspan 36' Length 29'9"


Bf/Me-109

Wingspan 32' Length 29'5"


P-51

Wingspan 37' Length 32'2"


Spitfire

Wingspan 36'10" Length 29'11"


La-7

Wingspan 32'2" Length 28'3"


Hellcat

Wingspan 42'10" Length 33'7"


P-47

Wingspan 40'9" Length 36'2"

[Proud Marine Dad]

When you put the Douglas A-1 Skyraider next to all the WWII fighters, including the P-47 which was a big plane, you realize how big the Skyraider really was.

[Gary Brantley]

When you put the Douglas A-1 Skyraider next to all the WWII fighters, including the P-47 which was a big plane, you realize how big the Skyraider really was.

You're sure right!

Skyraider Wingspan 50' Length 38'10"

[jkim]

After building a number of 109 models and then other WW2 fighters, I was amazed and surprised at how small the Messerschmitt really was.
