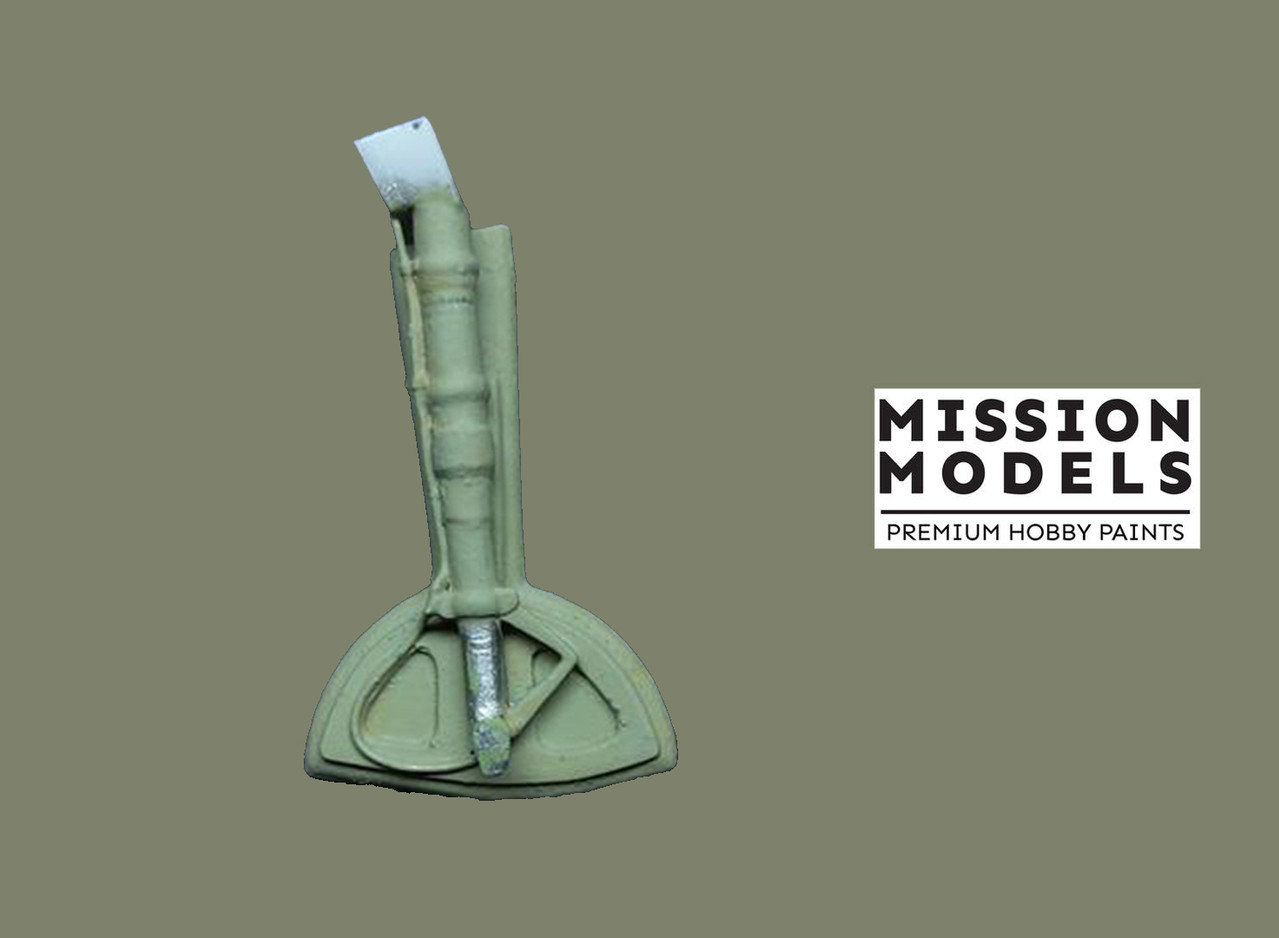

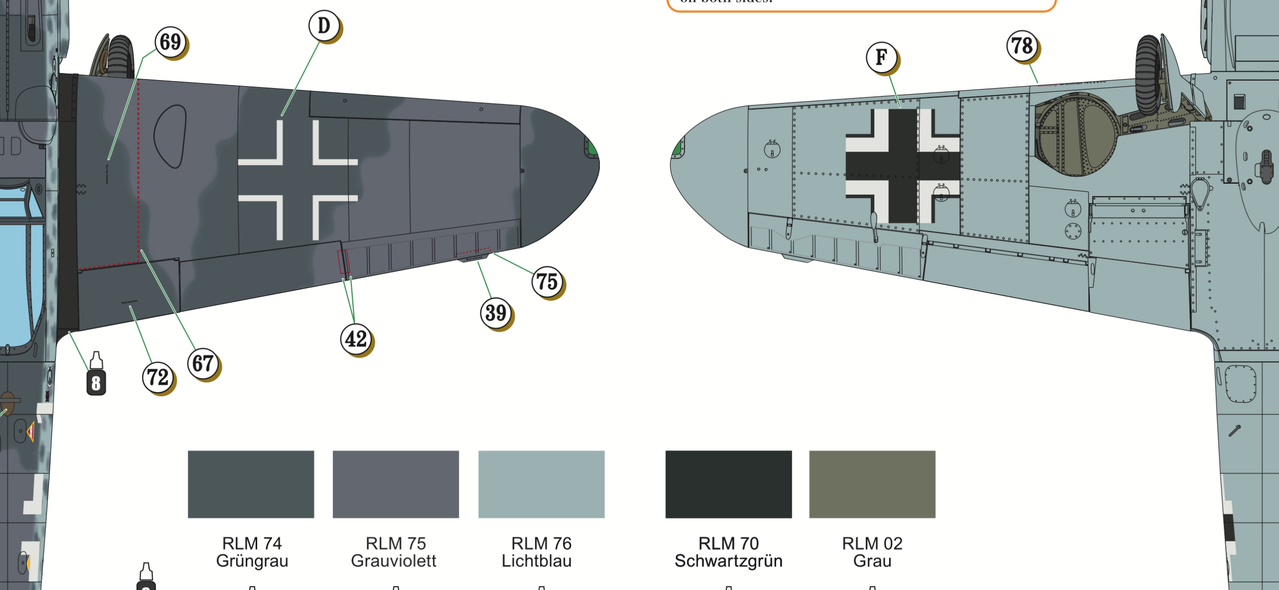

Your work is superlative but I don’t see this as being the right color. Way too green in effect. I’ve added the ZM G-14 color guide as well as created a composite of your color against a color chip to show the difference here.
Again, with so much attentive detail so far to see these legs in this color is difficult, to a degree. I’ve always considered German aircraft colors to be all done in shades of grey to an extent.
Your work is superlative but I don’t see this as being the right color. Way too green in effect. I’ve added the ZM G-14 color guide as well as created a composite of your color against a color chip to show the difference here.
Again, with so much attentive detail so far to see these legs in this color is difficult, to a degree. I’ve always considered German aircraft colors to be all done in shades of grey to an extent.
I find different paint brands pull out different shades of same RLM color to another brand. Be it Testors Model Master, Mission Models, AK Interactive, etc... I often go with my gut on which looks closer accuracy-wise and what looks better in your eyes.
A little weathering can tone down the color using panel liner - black or brown.
“Who controls the skies, controls the fate of this Earth”
Author unknown- 352nd Fighter Group, Blue-Nosed Bastards of Bodney
“Send one plane it’s a sortie; send two planes it’s a flight; send four planes it’s a test of airpower. - Richard Kohn
BlackSheep214 wrote: ↑Wed Jul 29, 2026 5:51 am
I find different paint brands pull out different shades of same RLM color to another brand. Be it Testors Model Master, Mission Models, AK Interactive, etc... I often go with my gut on which looks closer accuracy-wise and what looks better in your eyes.
A little weathering can tone down the color using panel liner - black or brown.

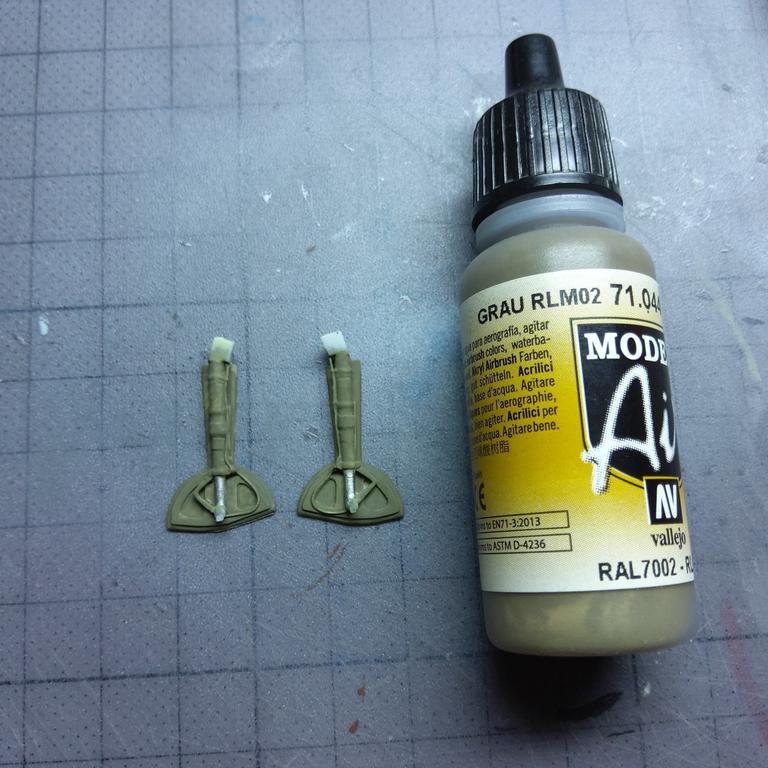

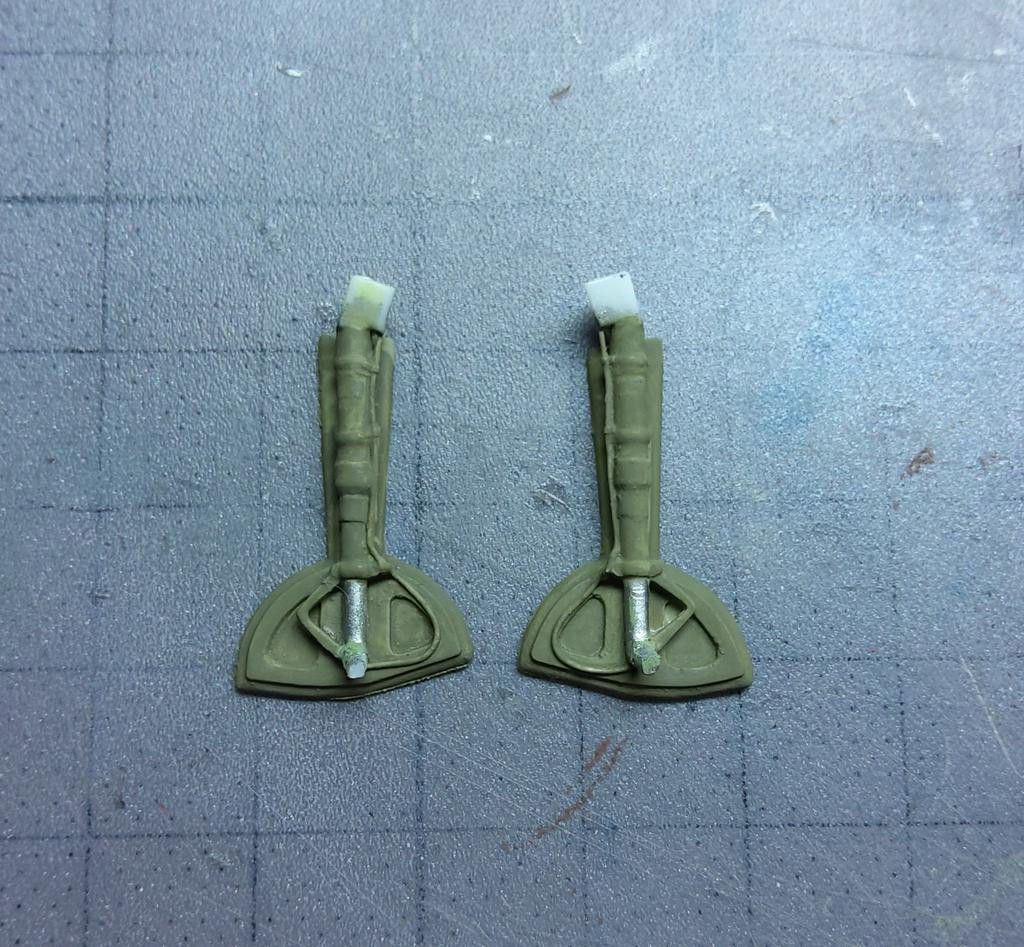

Dear all..since I had to correct the color of the landing gears...I looked for a look-a-like...and guess what ....(either Lucky or dumass memory)....I found it...
We’ve all been there with forgetting bottles since there are so many options. I personally use Mr Color for 02, but Vallejo Model Air is good (my experience being their WWII US color sets) I have a preference for the smoothness and layering qualities of Mr Color. Your new color appears better. I’m sure you’ll remove the hair that is on the left side piece.

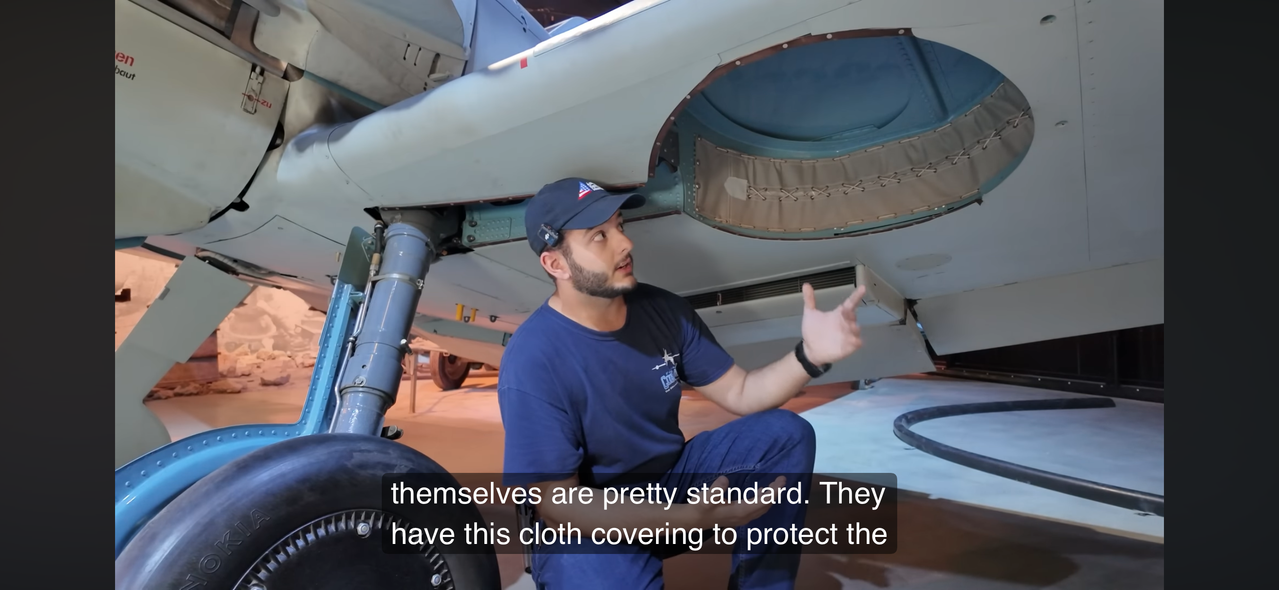

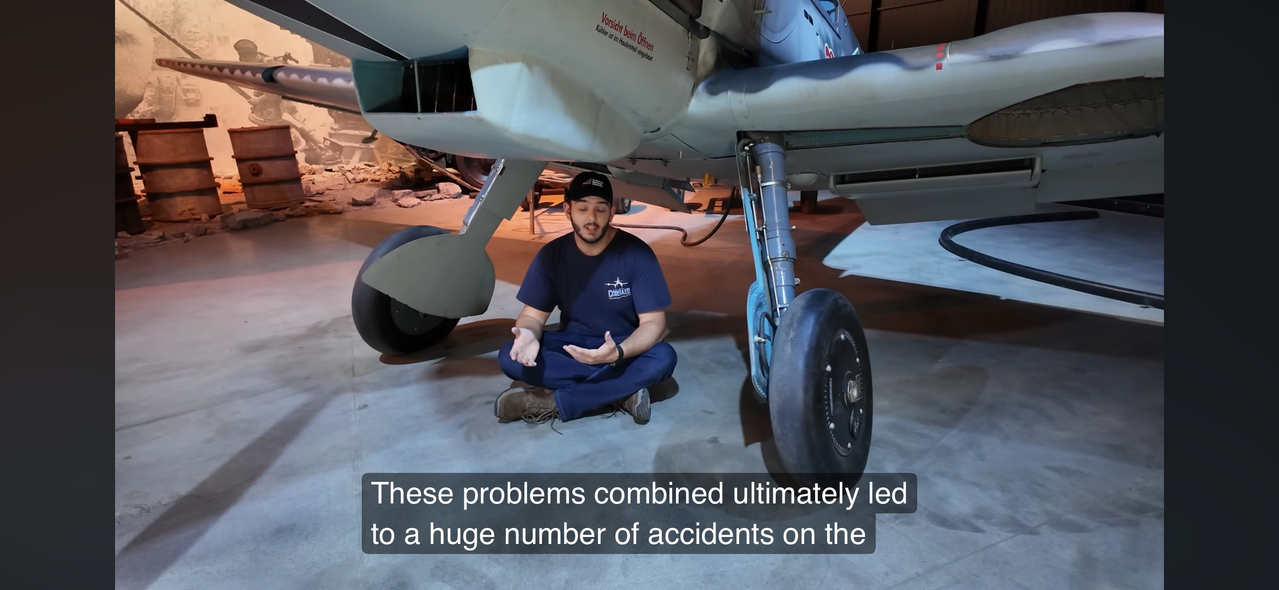

I pulled the still frames to a G-14 walkaround, not for the paint scheme but for the detailing of the gear strut assemblies. I don’t think every hose would be painted green as you have done if these are rubber and metal tubing with clamps (see images). The strut would be painted first than the cabling would be attached. Plus, this G-14 does have the holes inside the wheel wells for canvas covers; I’ve read that these covers were not practical in the field but the aircraft in every series had them.
The link is available on YouTube but I’m always at odds despite help to how I would post it here. American Heritage Museum walk-around G-14 is how I found it.
Thanks a lot Bruce...really appriciate your help....
I stripped the paint and repaint them both of course the hoses will metal and rubber where they should be...for the canvas...well ..thank you for the extra work...
And finally thank you for the details of the wheels and rims...
One aspect on the interior colors for the 109. By the time G-10 series went into production, German aircraft production was well dispersed to sub contractors due to the allied bombing campaigns. The sub contractions would usually paint their components at their location, and send them to the next location for final assembly, where they were not repainted into a single shade. So the gear doors could conceivably be in RLM 76 on both sides, the gear struts in RLM 66 or 02, and the wheel wells in BMF, RLM 02, or RLM 76 depending upon the paint situation at the manufacturing location. Late production aircraft captured in the last few months of the war often show this sort of patchwork look. The emphasis was on getting the aircraft built and into service as quickly as possible, not on making everything look uniform and parade ground ready.
"Surely I have made my meaning plain? I intend to avenge myself upon you, Admiral. I have deprived your ship of power, and when I swing 'round, I intend to deprive you of your life."
I really hesitated to make a comment at first due to the high level qualities of your craftsmanship but certain things did jump out at this late stage of your build that I thought if I didn’t mention (and I must admit Carlos saw and commented first) on the landing gear strut assembly that led to further inquiries.
One of things that kept me here on this forum was learning from the other modelers here and if this helps you in some small way to better understand the prototype than my aim has been successful.
I’m glad you remain open and flexible as you seek a higher standard of building.
Bruce
Note: I limited myself to actual photos, the color swatch books left behind after the war ended and finally on Zoukei Mura’s research. The walk around was to share details as I believe you are very detail oriented in your work style.
